Tooling List:

               - Line Optimizer
               - Connecting Points
               - Connecting Lines
               - Pline, Line Draw
               - Offset
               - Create Area
               - Duplicate Search
               - Double Points Search
               - Snap Radius
               - Offset Buffer
               - Explode Lines
               - Extend
               - Close Pline
              - Line Interpolation
               - Line Intersection
               - Convert Corridor
               - Angle
               - Line Distance Inside Area
               - Line Area Intersect
               - Point Radiusa
               - Sort Line Labels
               - Change Line Labels
               - Waypoints
               - BlockArea Line Generate
               - CorridorArea Line Generate
               - non-Georeferenced images Import

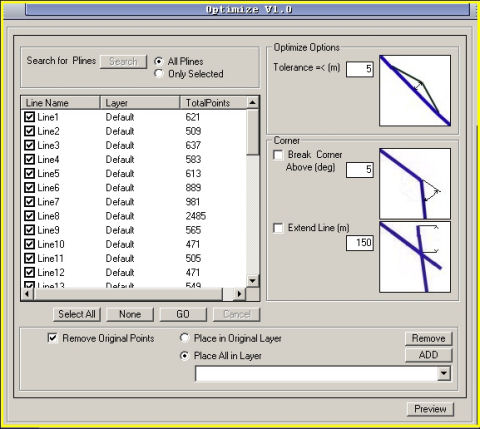

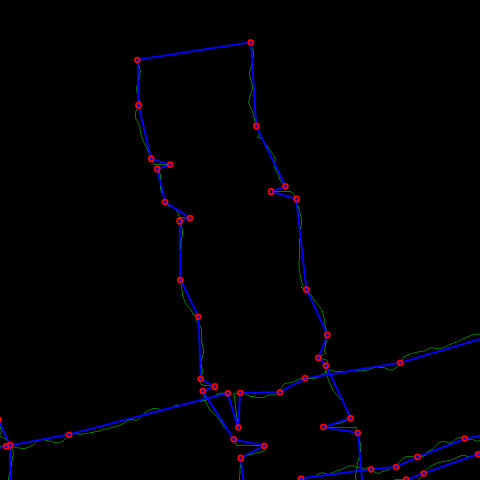

Line Optimizer

Line optimizer to decrease the amount of points, in some cases it reduce 70% without any consequence.
Useful tool, especially for in-flight real-time to cover areas.

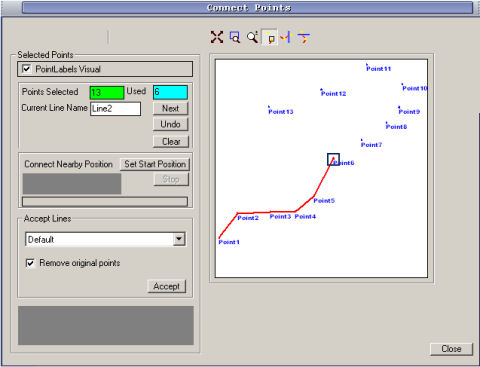

Connecting Points

A simple but effective tool to connect points.
There are two scan-line options (up/down-left/right) and a manual.
Third option is an automatic connection with the nearness point.

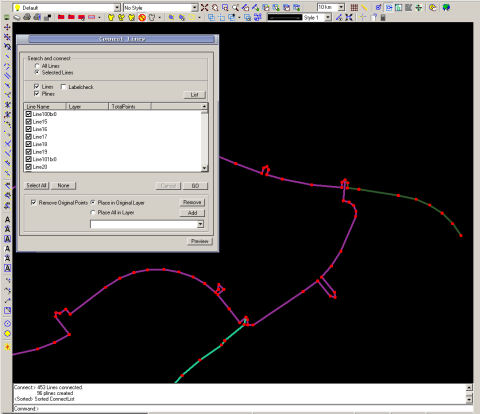

Connecting Lines

Connecting all selected line segments or plines if possible.

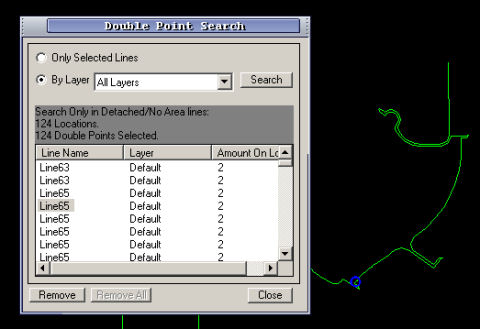

Double Points Search

Search for all unnecessary double points.

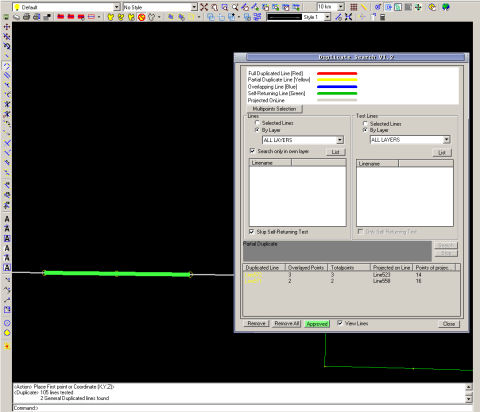

Duplicate Search

Search for complete duplicated lines, partial duplicated lines, overlapping lines and self returning lines.
Good filter to get a workable, reliable and a clean line set. This in order to supply accurate information
and to avoid lines are flown twice.

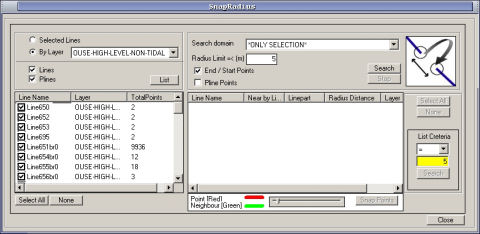

Snap radius

Snap radius allows you to connect all selected points within a certain radius.
